Mainly used for 1kg 3kg 5kg 10kg 20kg Chinese Micro Miniature Electronic Scales Miniature Load Cell for Kitchen Scales

10 Pieces
MOQ
$4.57(10 - 99 Pieces) $3.80(>=100 Pieces)
Precio
Mainly used for 1kg 3kg 5kg 10kg 20kg Chinese Micro Miniature Electronic Scales Miniature Load Cell for Kitchen Scales
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: LAA-B
Usage: PRESSURE SENSOR
Theory: Resistance Sensor
Output: Analog SENSOR
Product name: Miniature Load Cell
Application: Mainly used for electronic balances,kitchen scales etc.
Structure: Aluminium Alloy
Capacity: 1kg 3kg 5kg 10kg 20kg
Rated output: 1.0±20%mV/V
Zero balance: ±0.1mV/V
Linearity Error: ±0.05%R.O.
Repeatability Error: ±0.05%R.O.
Accuracy Class: S
Certificate: ISO 9001:2008;
Información básica
Certificación: ISO 9001:2008;
Model Number: LAA-B
Pago y Envío Términos
Descripción de producto
product



Product Description

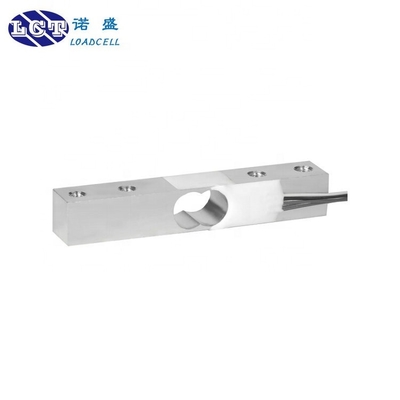

Miniature Load Cells

Capacity

1kg 3kg 5kg 10kg 20kg

Accuracy Class

S

Rated output

1.0±20%mV/V

Zero balance

±0.1mV/V

Linearity Error

±0.05%R.O.

Repeatability Error

±0.05%R.O.

Hysteresis Error

±0.05%R.O.

Creep(2 minute)

±0.05%R.O.

Temp.Effect on Output

±0.05%R.O./10°C

Temp.Effect on Zero

±2%R.O./10°C

Input resistance

1130±20Ω

Output resistance

1000±10Ω

Insulation Resistance

≥2000MΩ(50VDC)

Excitation,recommended

≤6VDC

Safe overload 150%.R.C

Operating Temperature  Range

-10-+40°C

Cable,and length

φ0.8mm×0.2m



Features:

1.Aluminum alloy construction with surface anodized;
2.Micro structure;
3.Mainly used for electronic balances,kitchen scales etc;
4.Environment protection class:IP65.











GUANLIANYIGXIAO

1.What's your MOQ?
Normally our MOQ is 100 pcs, but sometimes maybe we have other order on hand, if based on ODM, MOQ can be negotiated.
2.Are you a trading company?
We are manufacturer, our factory has passed CTI, ISO9001:2015, NTEP, OIML, we have good quality control.
3.Do you accept customized?
Yes, we have different customers make their own OEM products.
So we also can make products as per your requirement.
4.How long can I expect to receive my goods after I place an order?
Our production time is always 45 days after pre-production sample confirmation.
5.Can I get some samples before place order and how long for a sample?
Yes, but customer needs to pay for the samples and freight,the lead time for samples is about 7 days up on got the payment.
6.How is your shipping?
1)shipping by express(sample order) or by sea (bulk order);
2)worldwide shipping service available;
3)please contact before order as shipping cost varies time to time.
7.Will you have some discount?
1)To clients who bring repeat orders and large orders;
2)Please contact us for Better Quote.
