Caracteristicas

Especificaciones

Model Number: CLA

Type: force sensor

Usage: push-pull force meter, button feel tester

Theory: Strain gauges load cells

Output: 2.0mv/v

Description: SLC

certificate: CE

Información básica

Certificación: CE

Model Number: CLA

Pago y Envío Términos

Packaging Details: 100PCS in each Carton gross weight 21kgs each carton

Supply Ability: 8000 Piece/Pieces per Month

Descripción de producto

Product Description

Feature:

Stainless Steel 17-4PH

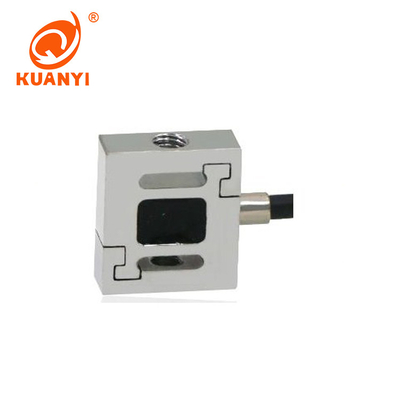

S shaped structure

Tension and compression two-way load

Mechanical overload protection

Application:

Widely used in push-pull force meter, button feel tester, robot and other tension-compression tester and automation equipment force measurement field

Specification:

Rated Load	5-200kg
Sensitivity	2.0±10%mV/V
Accuracy Class	0.05%F.S.
Zero balance	±0.04 mV/V
Non-linearity	±0.05%F.S.
Hysteresis	±0.05%F.S.
Repeatability	±0.05%F.S.
Creep (30mins)	±0.05%F.S.
TCO	±0.1%F.S/10℃
TC SPAN	±0.1%F.S/10℃
Input resistance	350±30Ω
Output resistance	350±5Ω
Insulation resistance	≥5000MΩ (50DVC)
Temperature Range. Compensated	-10~+40℃
Operating Temp Range	-20~+60℃
Safe load limit	150%F.S
Over load limit	300%F.S
Recommend excitation	2.5-5V DC
Maximum excitation	10V DC
Protection Class	IP65
Construction	Stainless Steel
Cable: Length	Diameter:2× 3m / 3× 3m
