Inicio /Productos/Célula de carga industrial/TRUCK Ladder Lighting Pad Truck Ladder Canister Load Cell

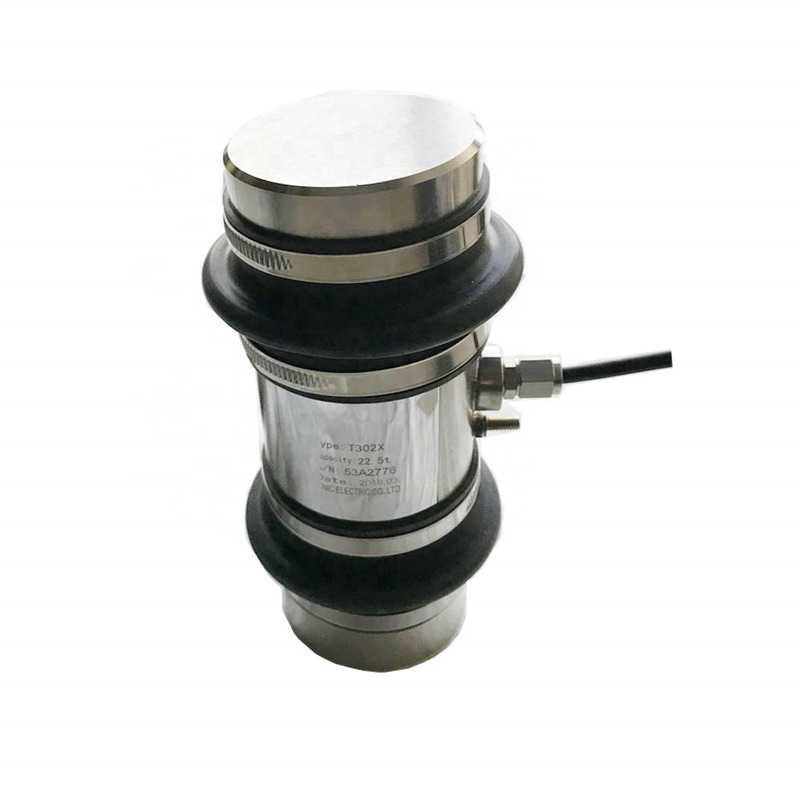

TRUCK Ladder Lighting Pad Truck Ladder Canister Load Cell

1.0 piece
MOQ
TRUCK Ladder Lighting Pad Truck Ladder Canister Load Cell
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: ZYTBC
Type: Load Cell
Usage: TRUCK scale
Theory: Resistance
Output: 1.75mV/V
Description: load cell
Capacity: 22.5t~45t
Sensitivity (Cn): load cell: 1.75mV/V
Accuracy: 0.03%F.S
Input resistance: 580±20Ω
Output resistance: 480±5Ω
Excitation Voltage: 5~12VDC
Insulation resistance: 5000MΩ
IP class: IP68
Material: Stainless Steel 17-4PH
Warranty: 1 Year
Información básica
Model Number: ZYTBC
Pago y Envío Términos
Packaging Details: Neutral packing or according to customers' requirements
Supply Ability: 300 Piece/Pieces per Day
Descripción de producto
Product Description
Specification
PARAMETER
VALUE
UNIT
Rated capacity-R.C.(Emax)
22.5, 45
t
Total Error
0.03
±% FSO
Rated output
1.75±0.002
mV/V
Zero balance
1
±% FSO
Creep Error
0.02
±% FSO
Temperature effect on zero
0.02
±% FSO/10℃
Temperature effect on output
0.02
±% FSO/10℃
Temperature Range,compensated
-10~+40
℃
Operating Temperature Range
-30~+70
℃
Maximum safe load limit
150
% of R.C.
Ultimate over load
300
% of R.C.
Recommend excitation voltage
5~12
Vdc
Maximum excitation voltage
15
Vdc
Input resistance
580±20
Ω
Output resistance
480±5
Ω
Insulation resistance
≥5000
MΩ/50VDC
sealing
IP68
Material
Alloy steel
Company Profile
Ningbo Zhengyan Technology specializes in the research, development, design and production of various high precision force transducers, load cells, torque sensors for multiple applications over 15 years. The products are for a wide range application, such as weighing systems, force measurement, load limitation, process control, oil and gas industry, chemical industry, food and medical industry and so on. We can help you to solve your problem either with one of the special load cells already in production or by the developing a custom-made product. Designing and developing new quality solutions is our specialty.
Packing & Delivery
Supply Ability :
500 Piece/Pieces per Day
Neutral packing or according to customers' requirements.
FAQ
1. who are we? We are based in Zhejiang, China, start from 2016,sell to North America(15.00%),Western Europe(20.00%),South America(10.00%),Northern Europe(10.00%),Mid East(10.00%),South Asia(5.00%),Southern Europe(5.00%),Oceania(5.00%),Eastern Europe(10.00%),Eastern Asia(5.00%),Africa(5.00%). There are total about 101-200 people in our office. 2. how can we guarantee quality? Always a pre-production sample before mass production; Always final Inspection before shipment; 3.what can you buy from us? Load Cell,Force transducer,Torque transducer,Load Pin,Weighing Sensor 4. why should you buy from us not from other suppliers? Ningbo Zhengyan Technology Co.,LTD has specialized in the research, development, design and production of various high precision force transducers, load cells, load pins, torque sensors for multiple applications over 15 years. 5. what services can we provide? Accepted Delivery Terms: FOB,CFR,CIF,EXW； Accepted Payment Currency:USD,EUR; Accepted Payment Type: T/T,L/C,PayPal,Western Union,Escrow; Language Spoken:English,Chinese,Spanish,Japanese,Portuguese,German,Arabic,French,Russian,Korean,Hindi,Italian.
