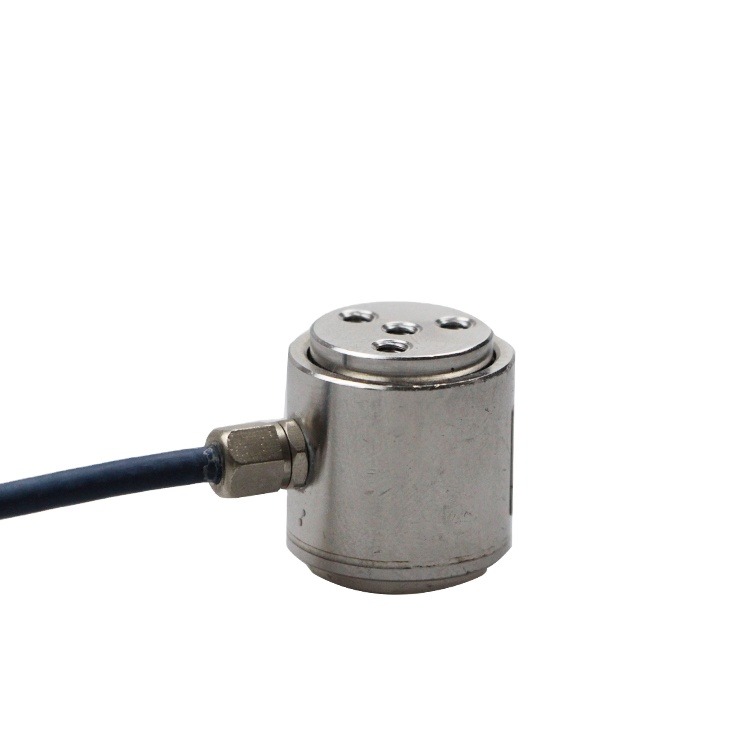

Force GML675 Stainless Steel Tension Compression Miniature Column Load Cell 200N

1 Piece
MOQ
$84.00(>=1 Pieces)
Precio
Force GML675 Stainless Steel Tension Compression Miniature Column Load Cell 200N
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Model Number: GML675
Type: force sensor
Usage: force measurement
Theory: Strain gauge deformation
Output: analog output signal
Description: GML675 load cell
Range: 20, 50, 100, 200, 300, 500, 1000, 2000N
Rated output (mV/ V): 2.0±10%mV/V
Comprehensive error (%F.S): ≤±0.05%
Excitation voltage (V): 5~15V
Creep: ±0.1%F.S/30min
Input resistance (Ω): 650±10Ω
Output resistance (Ω): 650±10Ω
Zero balance: ±0.05%F.S
Operating Temp.Range: -10~+40℃
Item: Stainless Steel Miniature Tension Compression Column Load Cell 200N
Información básica
Model Number: GML675
Pago y Envío Términos
Packaging Details: Standard export packaging
Supply Ability: 1000 Piece/Pieces per Month
Descripción de producto

GML675 Stainless Steel Miniature Tension Compression Column Load Cell 200N

Product Description

What features of GML675 miniature load cell ?

1. Stainless Steel;

2. Low profile, compact and strong structure;

3. High-frequency dynamic response;

4. Mainly used for the measurement of push and pull, injection molding and mold industry, robot grabbing, press-in, pull-pressure detection and control, and automobile assembly force value detection.

Dimension of GML675 miniature load cell ?

What details of GML675 miniature load cell ?

What specifications of GML675 miniature load cell ?

Specification

Rated Capacity

20, 50, 100, 200, 300, 500, 1000, 2000N

Comprehensive error

≤±0.05%

Rated output

2.0±10%mV/V

Zero balance

±0.05F.S

Non-linearity

0.05%

Creep

±0.1%F.S/30min

Input resistance

650±10Ω

Output resistance

650±10Ω

Insulation resistance

≥5000MΩ/100VDC

Temp. effect on span

±0.05%F.S/10℃

Temp. effect on zero

±0.05%F.S/10℃

Compensated temp range

-10~+60℃

Operating temp Range

-20~+80℃

Excitation voltage

5~15V

Safe overload

150%F.S

Ultimate overload

200%F.S

Defend grade

IP66
