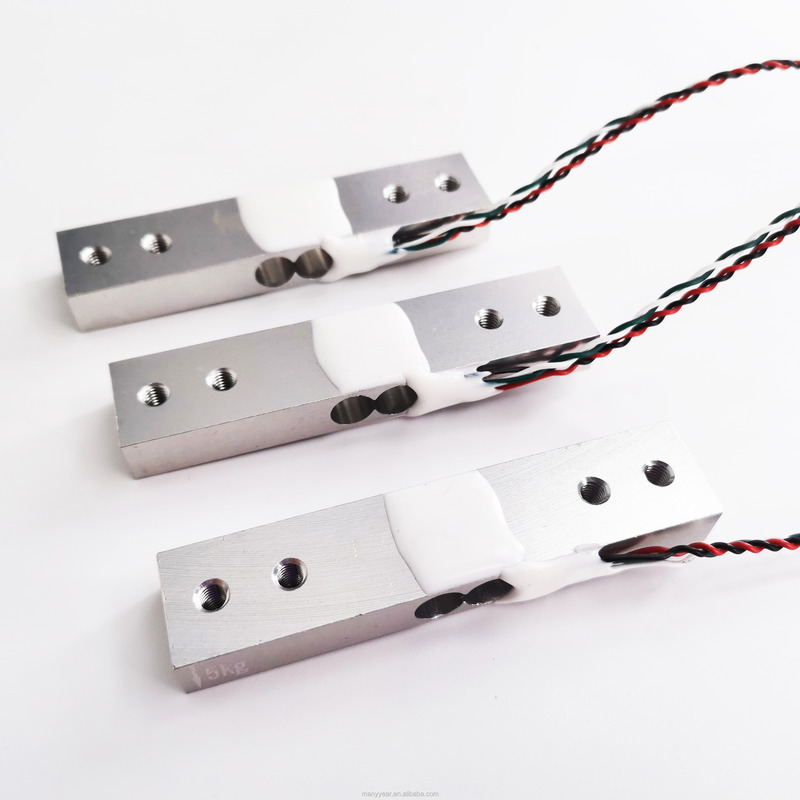

5kg Handle Scale Intelligent Coffee Machine High Temperature Load Cell

4 Pieces
MOQ
$5.00(4 - 3999 Pieces) $2.50(4000 - 19999 Pieces) $2.00(>=20000 Pieces)
Precio
5kg Handle Scale Intelligent Coffee Machine High Temperature Load Cell
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Warranty: 1 year
Customized support: OEM, ODM, OBM
Model Number: MLC614H
Power Supply: NA
Display Type: NA
Rated load: 3~10kg
Rated output: 1±0.03mv/v
Dimension: 75*9*16mm
Material: Alloy aluminum
Comprehensive error: 0.05FS
Application: handle scale,kitchen scale,fish scale
Zero balance: ±0.1%FS
Excitation voltage: 5~10VDC
Certificación: Reach
Información básica
Certificación: Reach
Model Number: MLC614H
Pago y Envío Términos
Packaging Details: 1pcs/polybag, 50pcs/inner box, 500pcs/outer box
Descripción de producto
Product Description
Smart coffee machine high temperature load cell 5kg
Model: MLC614H
Category: Micro load cell
Load range: 3~10kg
Dimension: 75*9*16mm
Material: alloy aluminum
Application: handle scale,kitchen scale,fish scale, postal scale

Technology Specification

Below spec is only for customer design reference. we can provide ODM product.
Comprehensive error:
0.05FS
Output resistance:
1000±10Ω
Rated output:
1±0.15mv/v
Insulation resistance:
≥2000MΩ(100VDC)
Non-linearity:
0.05%FS
Excitation voltage:
5~10VDC
Hysteresis:
0.05%FS
Compensated temp:
-10~+40ºC
Repeatability:
0.05%FS
Use temperature:
-20~+55ºC
Creep:
0.05%FS/10MIN
Temp effect on zero:
0.05%FS/10ºC
Zero balance:
±0.1%FS
Temp effect on span:
0.05%FS/10ºC
Input resistance:
1090±10Ω
Defend grade:
IP66
Product Assembly Structure
Blow force structure is for reference.
Product Process
for the load cell product process, include total 26 word step, take about 20days.
Product Application
this load cell can apply to pricing scale, packing scale, platform scale.
Delivery and Shipment
this load cell can apply to pricing scale, packing scale, platform scale.
